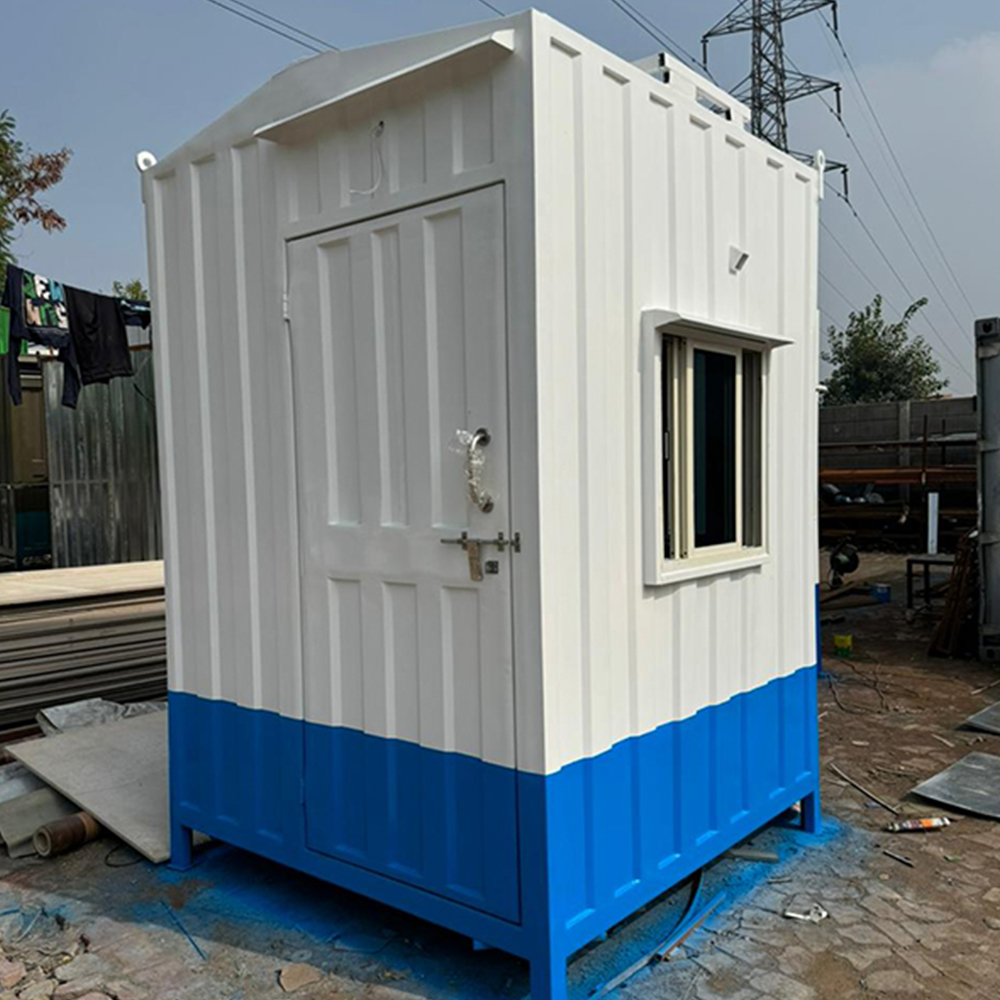

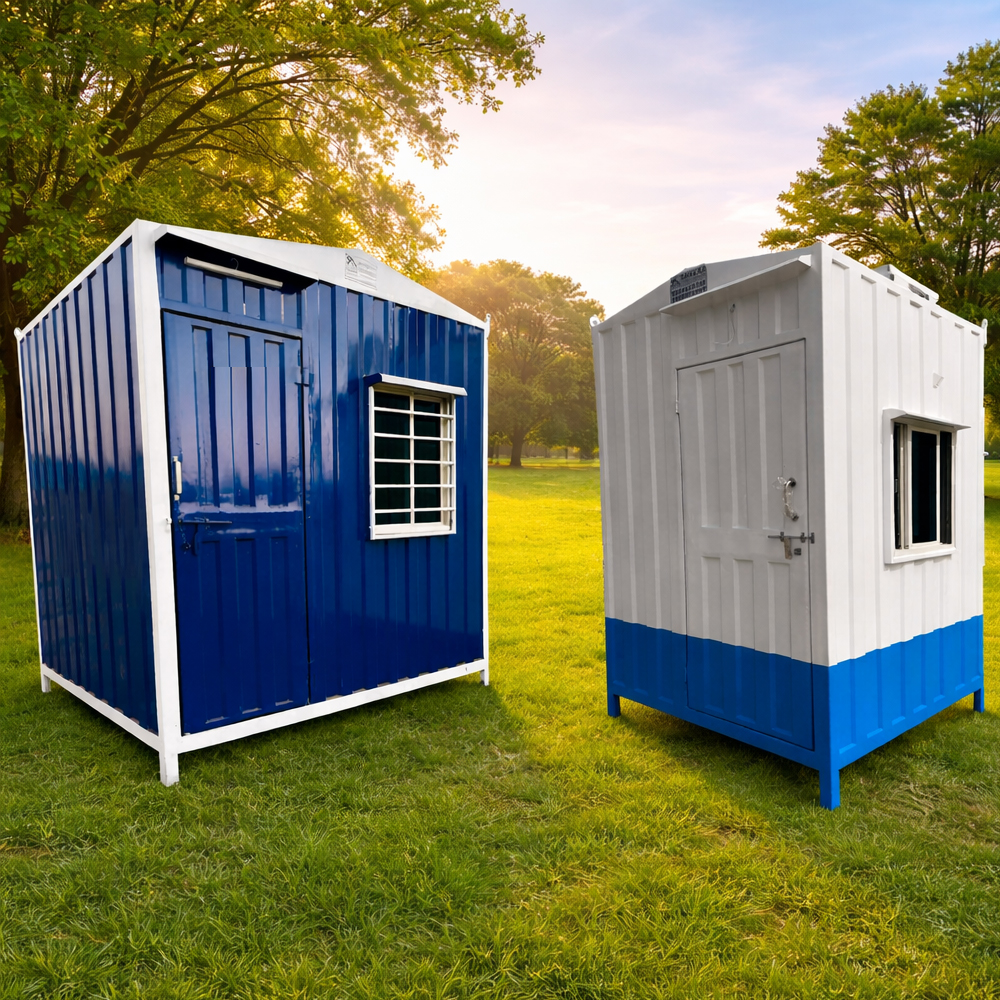

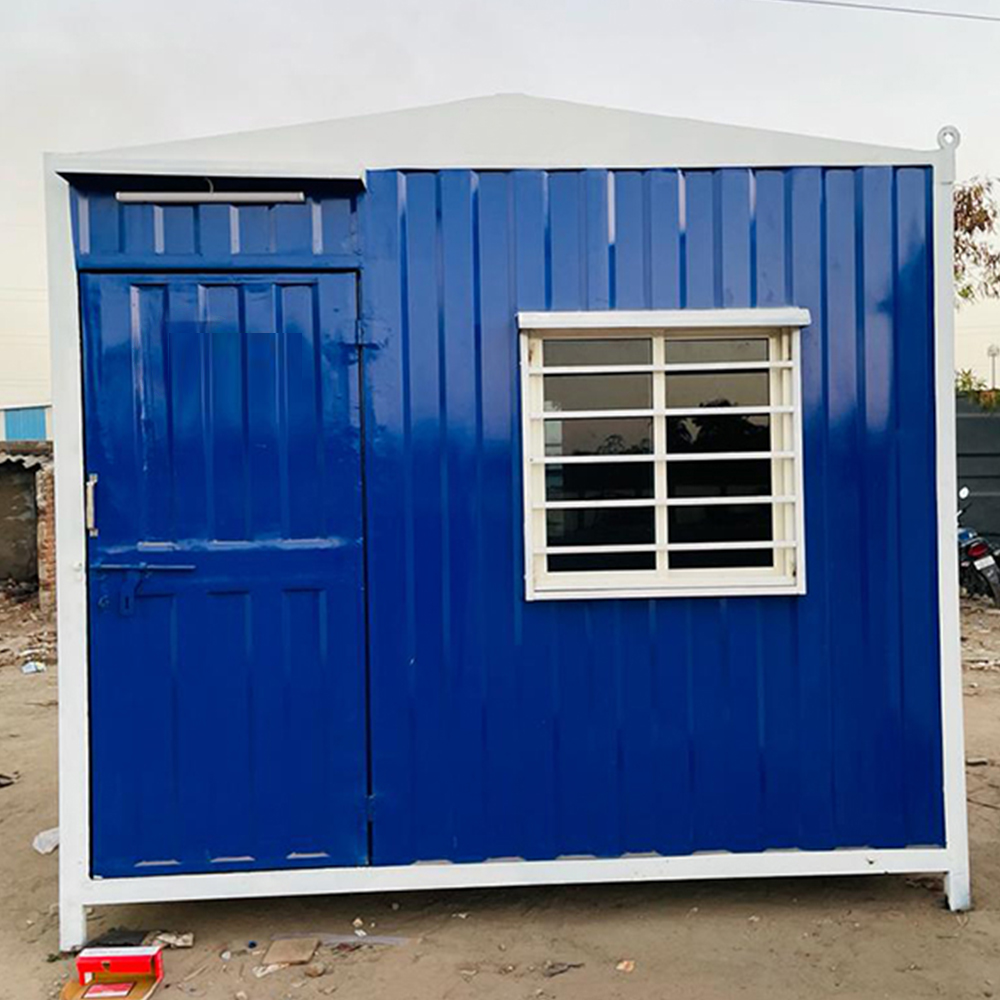

Portable Security Cabin

Modern Portable Cabins is a trusted Portable Security Cabin Manufacturer in Nagpur, offering strong, durable, and well-designed security cabins suitable for a wide range of locations. With increasing security requirements in residential, commercial, and industrial areas, portable security cabins have become an essential solution for monitoring entrances and ensuring safety.

Our Security Guard Cabins are commonly installed at residential societies, corporate offices, shopping malls, factories, construction sites, warehouses, and public buildings where security personnel need a comfortable and secure space to monitor visitors and manage entry points.

At Modern Portable Cabins, we manufacture security cabins using high-quality raw materials and advanced fabrication techniques to ensure durability, weather resistance, and long-lasting performance. These cabins are designed to provide proper ventilation, clear visibility, and sufficient space for security staff to perform their duties efficiently.

Base frame used are of pressed mild steel channel section.
Main structural elements are of ‘C’ Channels 100 mm x 50 mm.
Cross member is of ‘C’ channel section size 75 mm x 40 mm.

Side & end frames made out of pressed sections of suitable profiles/pillars of sufficient strength.
8 mm MDF board used for interior walls.
All steel sheets treated for corrosion resistance.
Vertically corrugated sheet panels continuously welded to top side and base structures.
All gaps sealed at edges and seams to prevent moisture ingress.

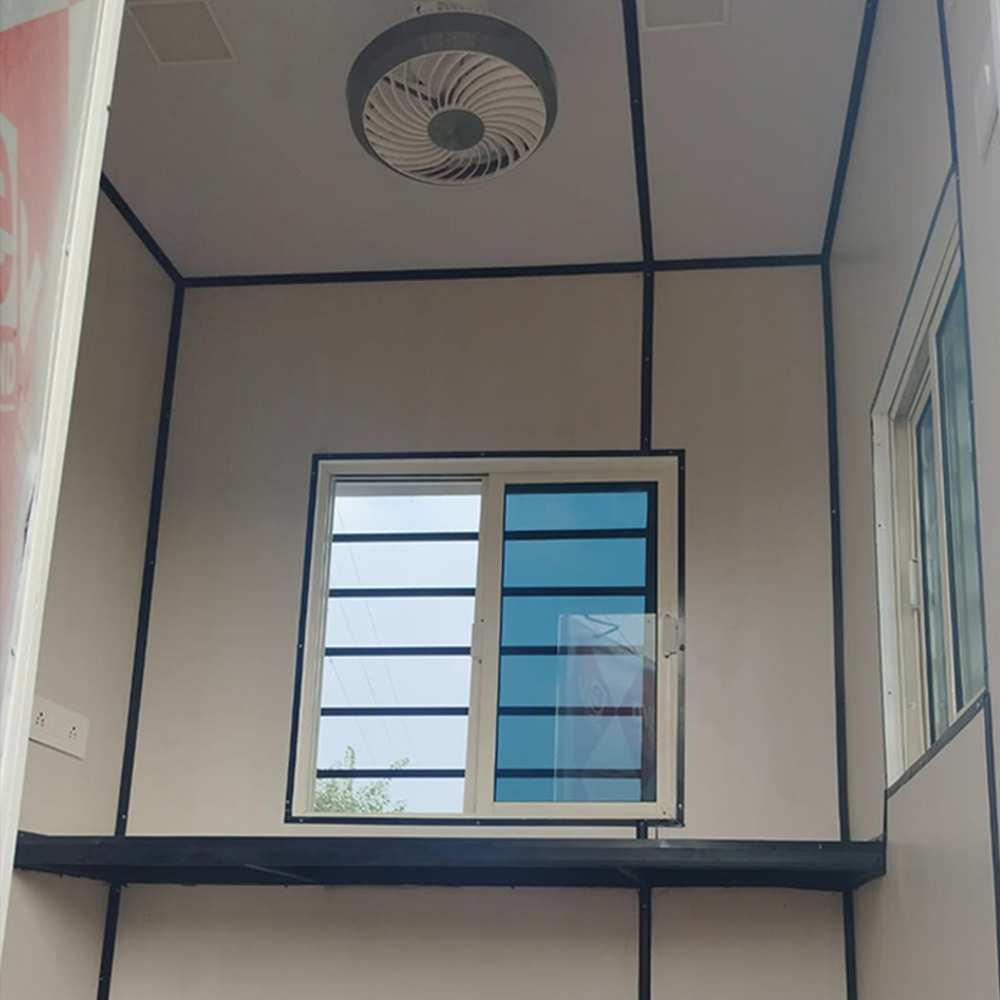

Interior panelling done with 8 mm MDF board.
Adequate insulation provided in roof structure.

Bottom frame provided with 18 mm thick plywood / bison panel / E-board.
Panels fixed using self-tapping screws.
PVC vinyl flooring fixed on panel surface.

Doors made from steel or aluminium frame.
Fitted with strong locking system.
Durable and weather-resistant design.

Aluminium sliding type powder coated windows.
Made from aluminium section with 4 mm thick tinted glass.

Concealed copper wiring suitable for 250V, 50Hz single phase AC supply.
3/19 copper cable used for lighting circuits.
ISI marked copper wires in PVC conduits.
Small distribution board with MCB protection provided.

Epoxy Zinc Phosphate primer used.
Two final coats of synthetic epoxy paint applied.
Provides corrosion resistance and fire protection.

STANDER SIZE

Sr.No.	Standard Size	Sq.Ft.
1	4' x 4' x 8'.6'	16
2	6' x 4' x 8'.6'	24
3	6' x 6' x 8'.6'	36
4	8' x 8' x 8'.6'	64
5	10' x 10' x 8'.6'	100

STANDER FEATURES

Sr.No.	Contents	Qty.
Sr.No.	Contents	4'x4' or 6'x4'	8'x8'	10'x10'
1	3'x3' sliding window	2	2	2
2	6'1/2" x 3' main doors	1	1	1
3	Paneling on all sides (including Celling) of Decorative Laminated Particle board	As per size	As per size	As per size
	Electrical Fitting
4	Tube Lights	1	2	2
5	Fan	1	1	2
5	Tube Lights	1	2	2
6	External bulk head light	1	1	1
7	MCB	1	1	1
8	15 Amp switch	0	1	1
9	5 Amp switch	1	2	2
10	Electrical switch boards inside	1	1	1
11	Wall to wall vinyl flooring	As per size	As per size	As per size
